Motorcycle Rubber Lip Front Fork Damper Oil Seal Ring With High Pressure

  • 1
  • 2
  • 3

Brand Name : XIAYI

Model Number : 20*33*10/15

Certification : IATF16949:2016

Place of Origin : China

MOQ : 1000pcs

Price : negotiation

Payment Terms : T/T, Western Union, L/C

Supply Ability : 50,000pcs per month

Delivery Time : 30 working days for new samples

Packaging Details : standard export package

Product Name : Oil seal

material : NBR

Tensile strength : 14.2MPa

Application : Shock absorber

Sample Time : 10days

Elongation @ break : 265%

Contact Now

Motorcycle Rubber Lip Front Fork Damper Oil Seal Ring With High Pressure


DC oil seal is a mechanical component used to seal oil. DC skeleton oil seal isolates the parts of the transmission component that need to be lubricated from the output components so that lubrication and leakage are not allowed.

Product NameShock Absorber Oil Seal
ColorBlack
MaterialBuilt-in special steel skeleton & nitrile rubber
Applicable for

Widely used in automobiles, motorcycles crankshaft, camshaft, differential,

shock absorber, engine, axle, front and rear wheels and other parts.

The role of the skeleton oil sealsgenerally is the transmission parts need to lubricate parts and output parts isolated, not to allow the leakage of lubricants, usually used for skeleton oil seal Skeleton oil seal rotary shaft, is a rotary shaft lip seal.
Note

1. Note that the lip of the oil seal should have a certain amount of lubricating oil.

2. Special attention should be paid to prevent dust from immersing in oil seals.

Specifications:

ITEMSPECTEST METHODRESULT
MAIN LIPø18.20±0.35PROJECTOR18.12-18.16
DUSTPROOF LIPø18.90±0.30PROJECTOR18.64-18.72
ODø33+0.3/+0.1CALIPER33.16-33.26
HEIGHT (1)10±0.20CALIPER10.10-10.16
HEIGHT (2)15±0.30CALIPER15.20-15.24


Description:
Our company is specialized in producing shock absorber parts: oil seal, Piston, Rod Guide, base valve, piston rod, valve disc, stamping parts and other sinter parts.
Equipment Advantages:
Automatic Hydraulic Machines
Automatic Mechanical Pressers
Vacuum Furnaces
Sintering furnace
CNC tooling machine
Properties:

ITEMSPECRESULTSTANDARD
Shore A80±584GB/T531-1999
Tensile strength≥12MPa14.2GB/T528-1998
Elongation @ break≥150%265
Compression deformationMax+5019GB/T7759-1996
100℃ * 70 h Sample B type
Tear strength right angle≥3059.56GB/T529-1999
air oven aging testHardness change point0～+10+3GB/T3512-2001
Tensile strength change rateMax-20-2
Elongation @ break change rateMax-50-6
oil resisitant 100℃ * 70 h (IRM901)Hardness change point-50～+10+3GB/T1690-1992
Volumn change rate-10～+5+1
oil resisitant 100℃ * 70 h (IRM903)Hardness change point-10～+5-2GB/T1690-1992
Volumn change rate0～+20+4
Brittleness Temperature≤-40℃-40℃GB/T1682-1994
Rubber standard: HG/T2810-2008 WA8533


We can also produce different valve seat with different dimensions.

Different Type Rotary Shaft Oil Seal
TypeMaterialLipSpringFeature
1NBR & FKMDouble LipsSingleMetal Coverd Rubber
2NBRDouble LipsSingleMetal Case
3NBRDouble LipsSingleMetal Case
4NBR & FKMSingleSingleDouble Metal Shell
5NBRSingleSingleMetal Case
6NBRSingleSingleDouble Metal Shell
7NBRDouble LipsDoubleDouble Springs
8NBR & FKMSingleWithoutMetal Coverd Rubber
9NBRSingleWithoutMetal Case
10NBRDouble LipsSingleHigh Pressure
11NBRDouble LipsSingleHigh Pressure
12PTFESingle & Double LipsWithoutStainless steel
13NBR & FKMDouble LipsSingleInside thread L
14NBR & FKMDouble LipsSingleInside thread R
Accept customized special type of oil seal


Applications:
1. Automotive Part
2. Motorcycle Part
3. Pump Parts
4. Locomotive Parts
5. Machinery Parts

Competitive Advantage:
(1) Electronic balance ensure density
(2) Test equipments to ensure crushing strength
(3) QC an PQC to ensure close tolerance and accurate dimension
Picture show:

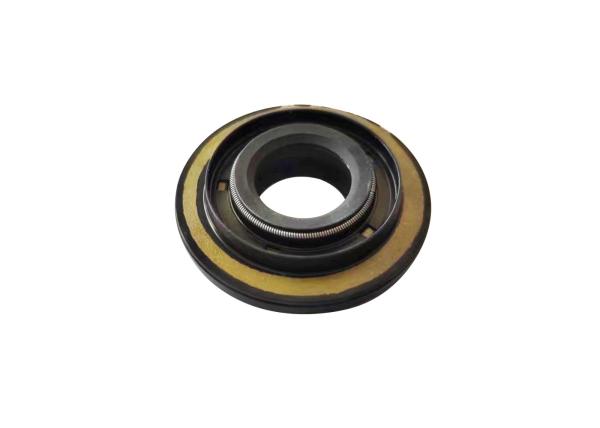

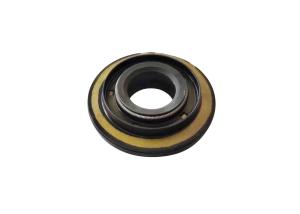

Motorcycle Rubber Lip Front Fork Damper Oil Seal Ring With High Pressure
